・JAN/UPC:0610839185535
・TEKWIND型番:ASU-Z9PE-D16/ASMB6-IKVM

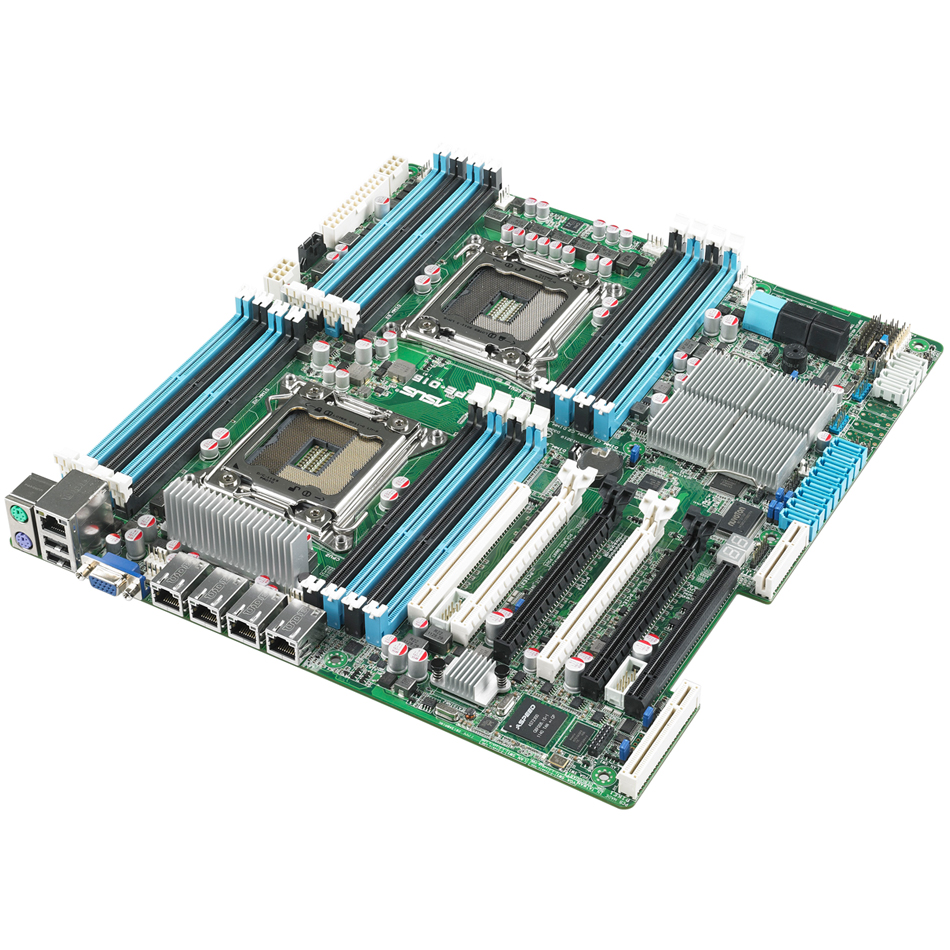

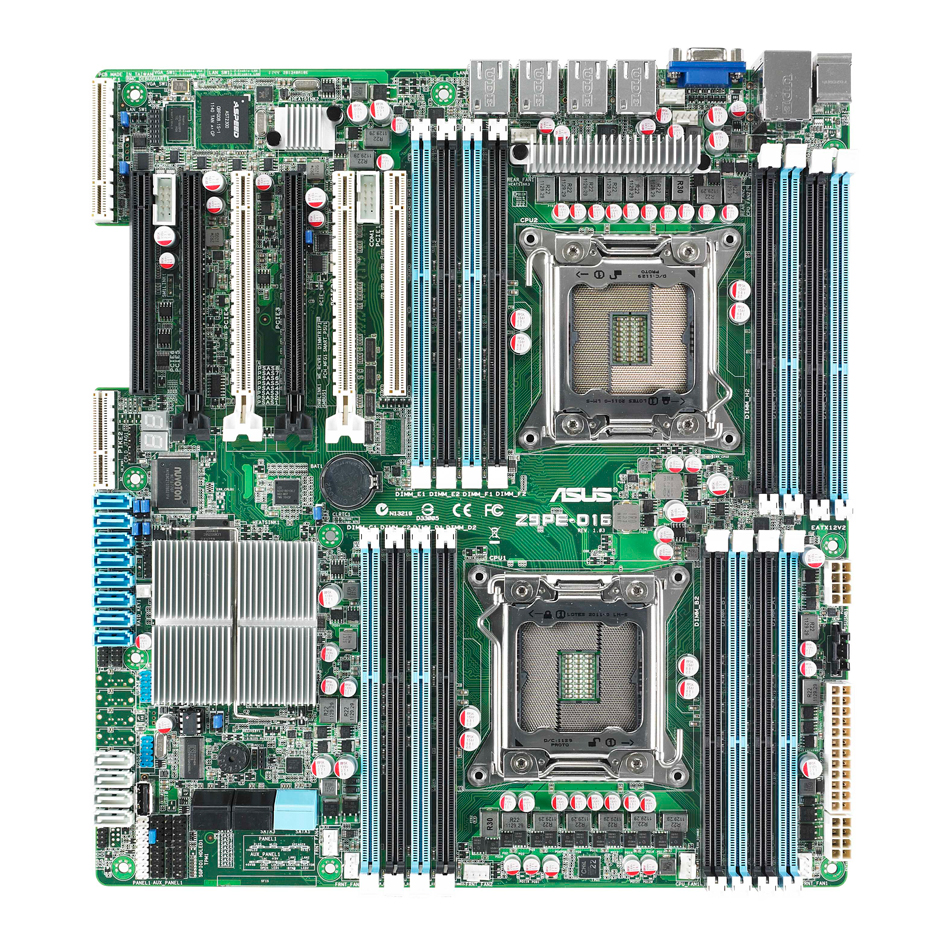

The ASUS Z9PE-D16 serverboard provides an ideal foundation for reliable performance and future upgrades. Through innovative ASUS design, it offers high power efficiency of up to 90%, quad Intel? LAN ports with great virtualization support, and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
Processor / System Bus | 2 x Socket 2011 Intel® Xeon® processor E5-2600 product family Intel® Xeon® processor E5-2600 v2 product family QPI 6.4 / 7.2 / 8.0 GT/s |
---|---|
Core Logic | Intel® C602-A PCH |
Memory | Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB RDIMM Memory Type : DDR3, 1866/1600/1333/1066 RDIMM DDR3, 1866/1600/1333/1066 UDIMM DDR3, 1866/1600/1333/1066 RDIMM Memory Size : 2GB, 4GB, 8GB, 16GB,32GB RDIMM 2GB, 4GB, 8GB UDIMM 8GB, 16GB, 32GB LRDIMM |
Expansion Slots | Total Slot : 6 Slot Location 1 : PCI-E x16 Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x16 (Gen3 X16 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link) Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied Slot Location 6 : PCI-E x16 Additional Slot 1 : PIKE Slot for Stroage expansion Follow SSI Location# |
Form Factor | 12 " x 13 " Inch |
ASUS Features | Fan Speed Control Rack Ready (Rack and Pedestal Dual Use) ASWM Enterprise |
Storage | SATA Controller : Intel® C602-A AHCI 4 x SATA2 3Gb/s ports 2 x SATA3 6Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SATA Controller : Intel® C602-A SCU 4 x SATA2 3Gb/s ports Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional) ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional) ASUS PIKE 2308 8-port SAS 6G RAID card (Optional) ASUS PIKE 9230 4-port SATA 6G RAID card (Optional) |
Networking | 1 x Quad Port Intel Ethernet Controller i350-AM4 + 1 x Mgmt LAN |
Graphic | Aspeed AST2300 with 16MB VRAM |
On Board I/O | 1 x TPM header 1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector 1 x Management Connector , Onboard socket for management card 2 x USB pin header , Up to 4 Devices 1 x Internal A Type USB Port 8 x Fan Header , 4pin 1 x Chassis Intruder 2 x Serial Port Header 2 x SMBus |

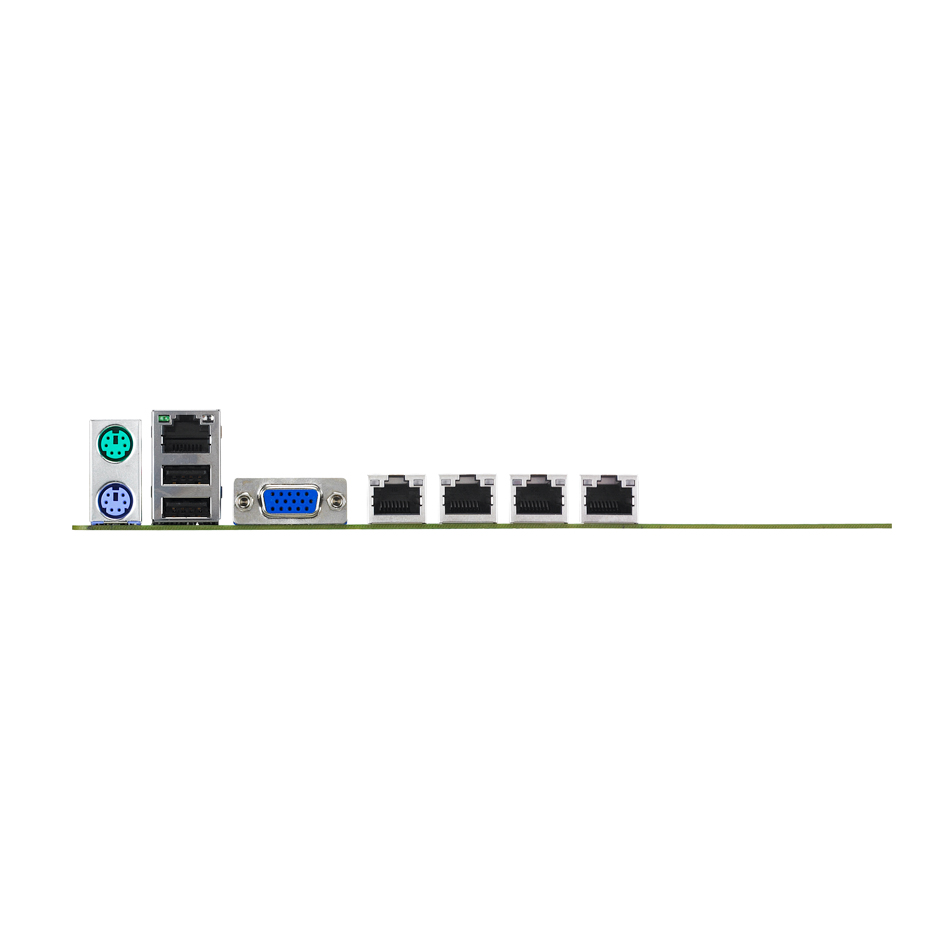

Back I/O Ports | 2 x External USB Port 1 x VGA Port 4 * GbE LAN + 1 * Mgmt LAN 1 x PS/2,1 KB/mouse |
Management Solution | ASWM Enterprise ASMB6-iKVM for KVM-over-Internet |
EMI | US (FCC, CFR47 Part 15, Class A) Europe (CE, EN55022 & EN55024) Australia (C-TICK) |
Environment | Operation Temperature: 10℃ ~ 35℃ Non Operation Temperature: -40℃ ~ 70℃ Non Operation Humidity: 20% ~ 90% (Non condensing) |
Accessories | Gift Box Pack : 1 x User's Guide 1 x ASUS Mainboard Support CD 1 x I/O Shield 1 x ASWM Enterprise SDVD 10 x SATA Data Cables 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide 1 x USB to SATA DOM Power cable Bulk Pack : 1 x User's Guide 1 x ASUS Mainboard Support CD 1 x I/O Shield 1 x ASWM Enterprise SDVD 1 x ASMB6-iKVM Support CD 1 x ASMB6-iKVM User Guide |
Product SKUs | Standard Gift Box Pack with ASMB6-ikvm Standard Bulk Pack with ASMB6-ikvm |
Monitoring | CPU Temperature Fan RPM |
Note | * Refer to ASUS Server AVL for latest update. ** Specifications are subject to change without notice. |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
