・JAN/UPC:4937699420306
・TEKWIND型番:ASU-P8B-C/4L
【主な特長】

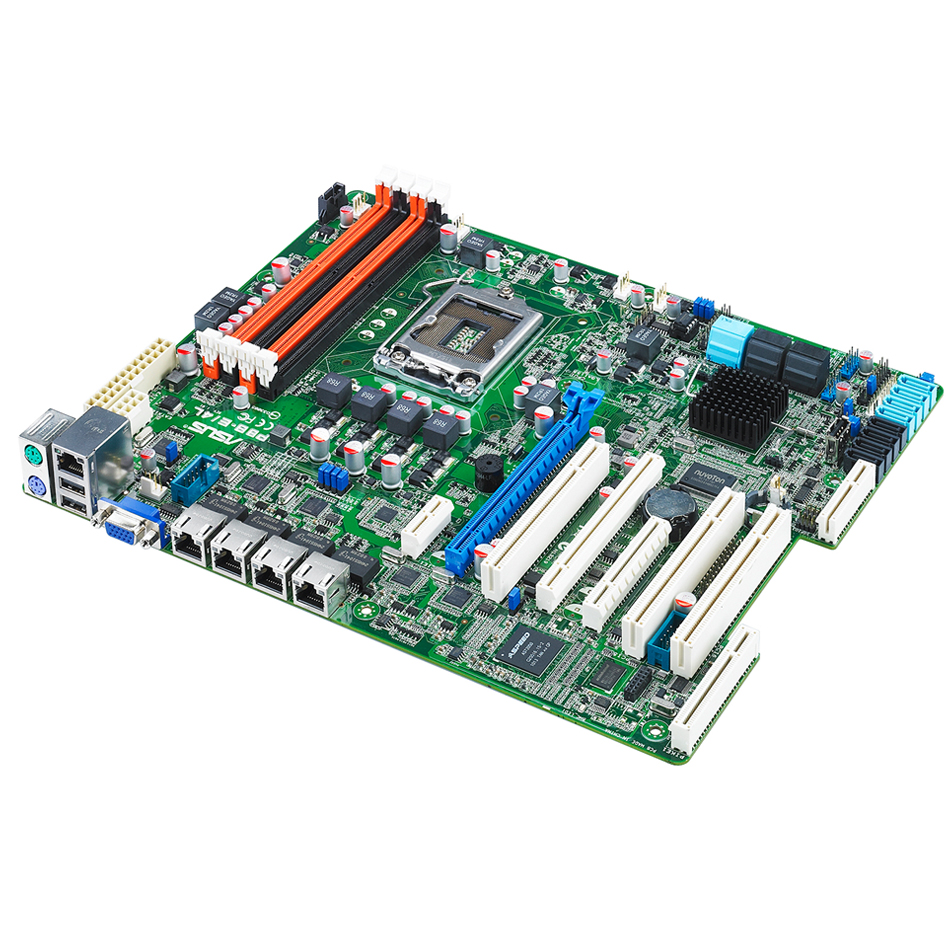

P8B-C/4L is the latest ASUS UP serverboard designed as Bromolow platform with Intel up-to-date architecture, quad Intel server class GbE and high PCI expandability. P8B-C/4L is ideal for legacy PCI appliances (Ex: surveillance, video capturing, etc. ), networking and other entry applications.
製品についてお気軽にお問い合わせください
この製品を問い合わせるスペック
Processor / System Bus |
1 x Socket LGA1155 Intel® Xeon® E3-1200 Processor Family Intel® Xeon® E3-1200 v2 Processor Family Intel® Core™ i3-2100 Processor Family Intel® Pentium™ G8x0/G6x0 Intel® Celeron™ G5x0/G4x0 *Refer to www.asus.com for CPU Support list |
---|---|
Core Logic | Intel® C202 Chipset |
Memory |
Total Slots : 4 (2-channel) Capacity : Maximum up to 32GB UDIMM Memory Type : DDR3, 1066/1333/1600, UDIMM, with ECC*1 Memory Size : |
Expansion Slots |
Total Slot : 7 Slot Location 1 : PCI 32bit/33MHz Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI 32bit/33MHz Slot Location 4 : PCI 32bit/33MHz Slot Location 5 : PCI 32bit/33MHz Slot Location 6 : PCI-E x16 (Gen3 X16 Link) *2 Slot Location 7 : PCI-E x8 Follow SSI Location# |
Form Factor | 12 " x 9.6 " Inch |
ASUS Features |
FAN speed control Rack Ready (Rack and Pedestal dual use) |
Storage |
SATA Controller : Intel® C202 6 x SATA2 3Gb/s ports Intel® Rapid Storage Technology(RST) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) |
Networking | 4 x Intel® 82574L |
Graphic |
XGI® Z9s with 64MB VRAM *3 Aspeed AST1100 with 64MB VRAM *4 |
On Board I/O |
1 x TPM header 1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector 1 x USB connector 2 x USB pin header , Up to 4 Devices 5 x Fan Header , 4pin 1 x Chassis Intruder 2 x Serial Port Header |

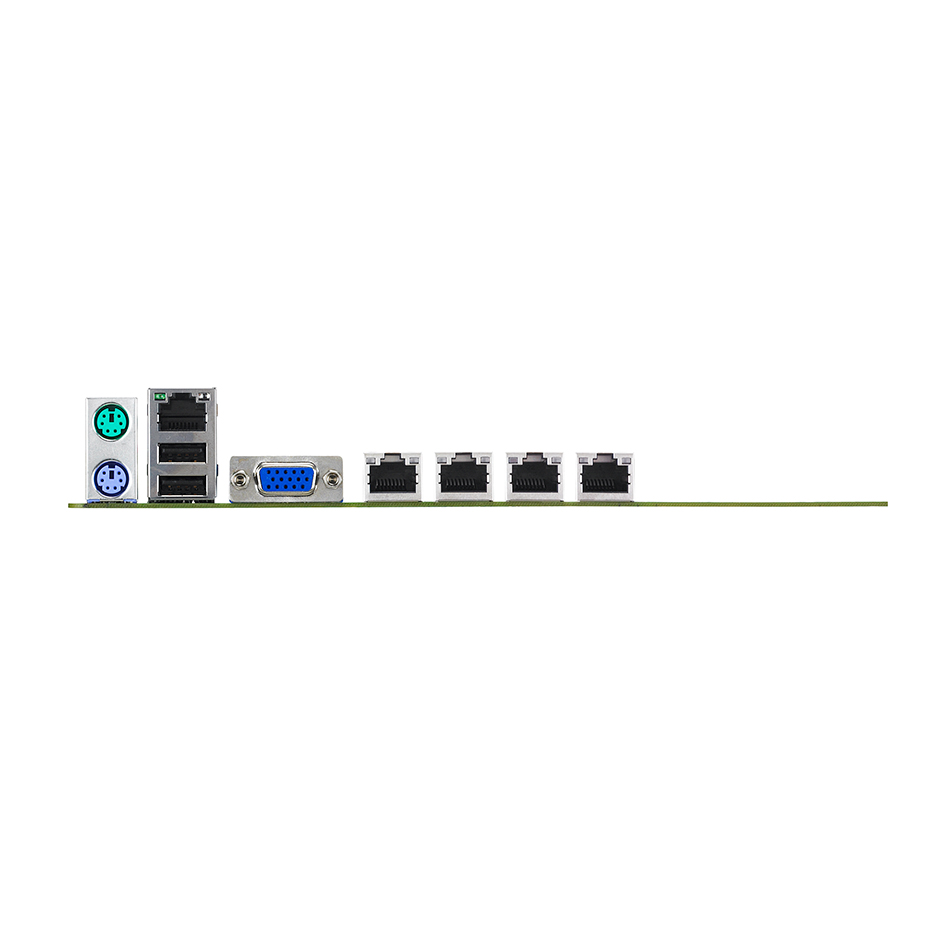

Back I/O Ports |
2 X External USB Port 1 X VGA Port 4 X RJ-45 1 X PS/2 KB/Mouse |
EMI |
US (FCC, CFR47 Part 15, Class B) Europe (CE, EN55022 & EN55024) |
Environment |
Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
Accessories |
Gift Box Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 6 x SATA 3G Cable(s) 1 x Plate for LGA1155 Bulk Pack : 1 x User's Guide 1 x Support CD 1 x I/O Shield 1 x Plate for LGA1155 |
Product SKUs |
Standard Gift Box Pack Standard Bulk Pack |
Monitoring |
CPU Temperature Fan RPM |
Note |
*1 DDR3 1600 can only be supported with Intel® Xeon® E3-1200 v2 Processor *2 Gen3 link can only be supported with Intel® Xeon® E3-1200 v2 Processor *3 XGI® Z9s with 64MB VRAM (REV1.0x) *4 ASPEED® AST1100 with 64MB VRAM (REV2.0x) |
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
